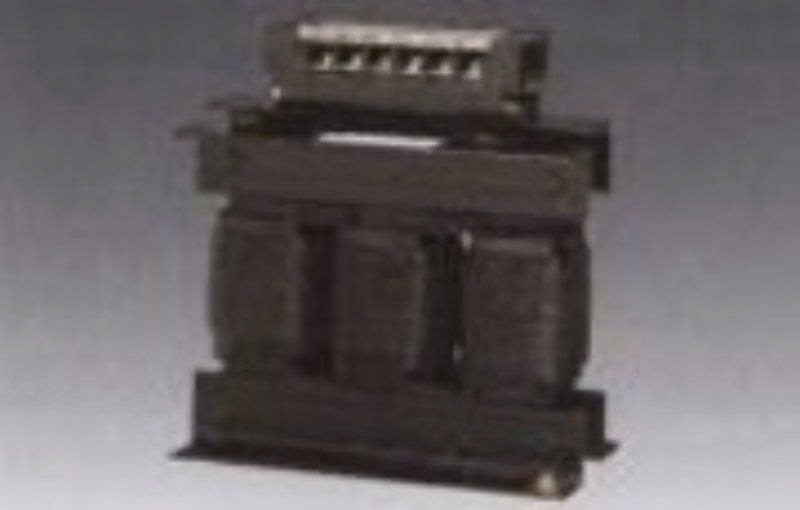

Inverter input reactor
Use this reactor to improve the input power factor, reduce harmonics or suppress an external surge on the inverter power side.
Inverter input reactor
About Inverter input reactor
The use of the inverter may cause harmonic currents on the power side to affect the equipment of the same power system. Use this reactor to comply with the harmonic suppression guidelines and protect the inverter from external surges.
Features

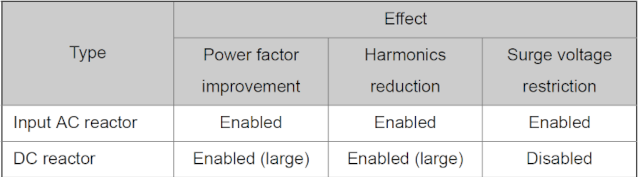

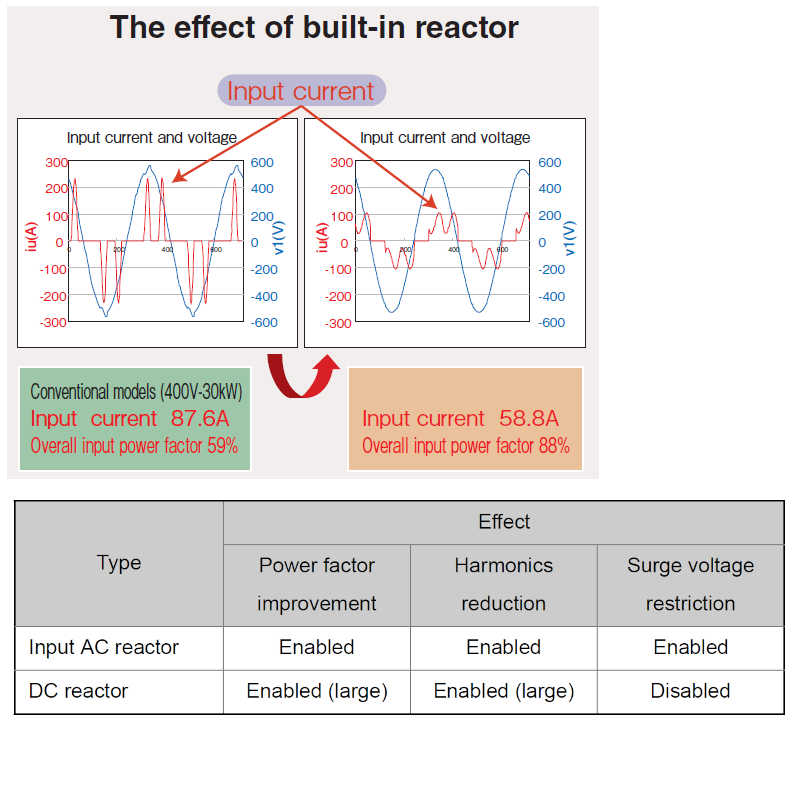

Suppression of harmonics
It is recommended to install the reactor on the inverter power side in order to reduce harmonics.
Power coordination
Install this reactor when the power capacity is 500 kVA and 10 times or more the inverter capacity.
Surge suppression
This reactor protects the inverter against surges from the thyristor and other devices.
Inverter input reactor Spec
Installation direction (o: Can be installed, x: Cannot be installed)
| Type-form | Rating | Installation direction | |
|---|---|---|---|
| Horizontal (floor standing) | Vertical (wall mount) | ||
| PFL series | |||
| PFL-2001S | 1.7A | o | o (Note 1) |
| PFL-2005S | 5.5A | o | o (Note 1) |
| PFL-2011S | 11A | o | o (Note 1) |
| PFL-2012S | 12.5A | o | o (Note 1) |
| PFL-2018S | 18A | o | o (Note 1) |
| PFL-2025S | 25A | o | o (Note 1) |
| PFL-2050S | 50A | o | o (Note 1) |
| PFL-2100S | 100A | o | o (Note 1) |
| PFL-2150S | 150A | o | x |
| PFL-2200S | 200A | o | x |
| PFL-2300S | 300A | o | x |
| PFL-4012S | 12.5A | o | o (Note 1) |
| PFL-4025S | 25A | o | o (Note 1) |
| PFL-4050S | 50A | o | o (Note 1) |
| PFL-4100S | 100A | o | x |
| PFL-4150S | 150A | o | x |
| PFL-4450S | 450A | o | o |
| PFL-4613S | 613A | o | o |
| PFL1 series | |||
| PFL1-2350 | 350A | o | x |
| PFL1-2450 | 450A | o | x |
| PFL1-4260 | 260A | o | x |
| PFL1-4350 | 350A | o | x |
| PFL1-4455 | 455A | o | x |
| PFL1-4800 | 800A | o | x |
Note 1: For models with "o" for vertical (wall mounting), use static load.
When selecting the input reactor, see the catalogs of the individual inverter models.
