Inverter motor end surge voltage suppression filter
Install this filter to prevent the surge voltage from degrading the insulation of the motor winding wire when driving a 400 V class motor with the inverter.
Inverter motor end surge voltage suppression filter
About Inverter motor end surge voltage suppression filter
When a 400 V class motor is driven by an inverter, a surge voltage exceeding the insulation level of the motor winding wire may be generated depending on the power-supply voltage, cable constant, wire length, etc. Prolonged and repeated application of such a voltage may degrade the insulation of the motor winding wire.
Be sure to install this filter when driving a motor other than an insulation-reinforced motor.
Features

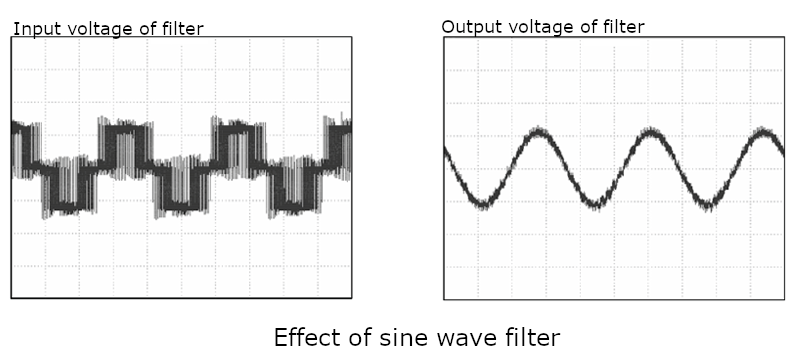

Motor end surge voltage (micro surge) suppression
Install this filter when driving a 400 V class motor other than an insulation-reinforced motor.

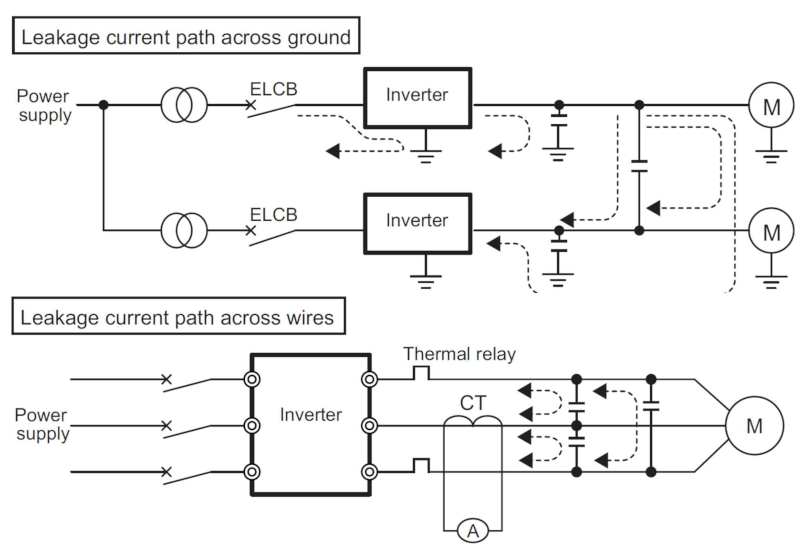

Prevention of leak current from the motor wire
If the motor wire is long, the charging current flowing to the electrostatic capacitance of the cable may affect the operation.
・Malfunction of the earth leakage circuit breaker
・Malfunction of the thermal relay
・Malfunction of the overcurrent protection function
The filter can also be used to prevent these malfunctions.
Inverter motor end surge voltage suppression filter Spec
Installation direction (o: Can be installed, x: Cannot be installed)
| Type-form | Applied inverters | Installation direction | |
|---|---|---|---|
| Horizontal (floor standing) | Vertical (wall mount) | ||
| MSF-4015Z | Please refer to the catalog for each model. | o | x |
| MSF-4037Z | o | x | |
| MSF-4075Z | o | x | |
| MSF-4150Z | o | x | |
| MSF-4220Z | o | x | |
| MSF-4370Z | o | x | |
| MSF-4550Z | o | x | |
| MSF-4750Z | o | x | |
| Type-form | Applied inverters |
|---|---|
| Please contact us. | VFAS3-4110KPC to 4280KPC VFAS1-4355KPC to 4500KPC VFPS1-4400KPC to 4630KPC |
When selecting the motor end surge voltage suppression filter, see the catalogs of the individual inverter models.
