Inverter radio noise filter
Many Toshiba inverter models have a radio noise filter built in them. Use this filter when you need to further suppress noise.
Inverter radio noise filter
About Inverter radio noise filter
Use different noise filters depending on the type of noise impact.
When lowering the carrier frequency of the inverter eases the noise impact, install the RC type zero-phase reactor for the motor wiring.
Features

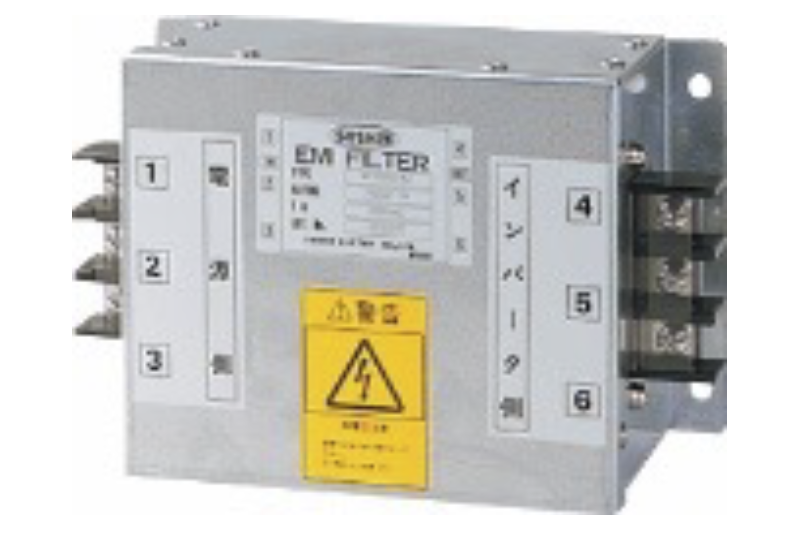

High damping NF type
This is an LC type high-performance noise filter to be installed on the inverter power side.
Simple noise filter RCL type
This is a capacitive filter common to all capacity bands that can be installed on the inverter power side.

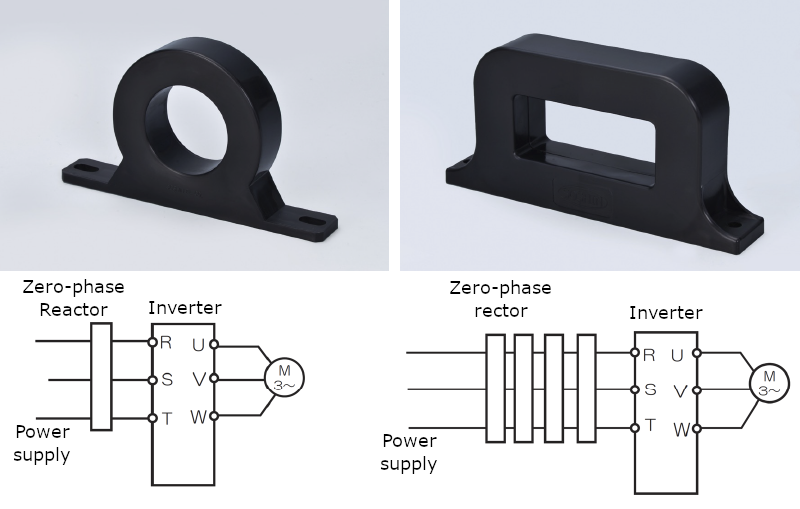

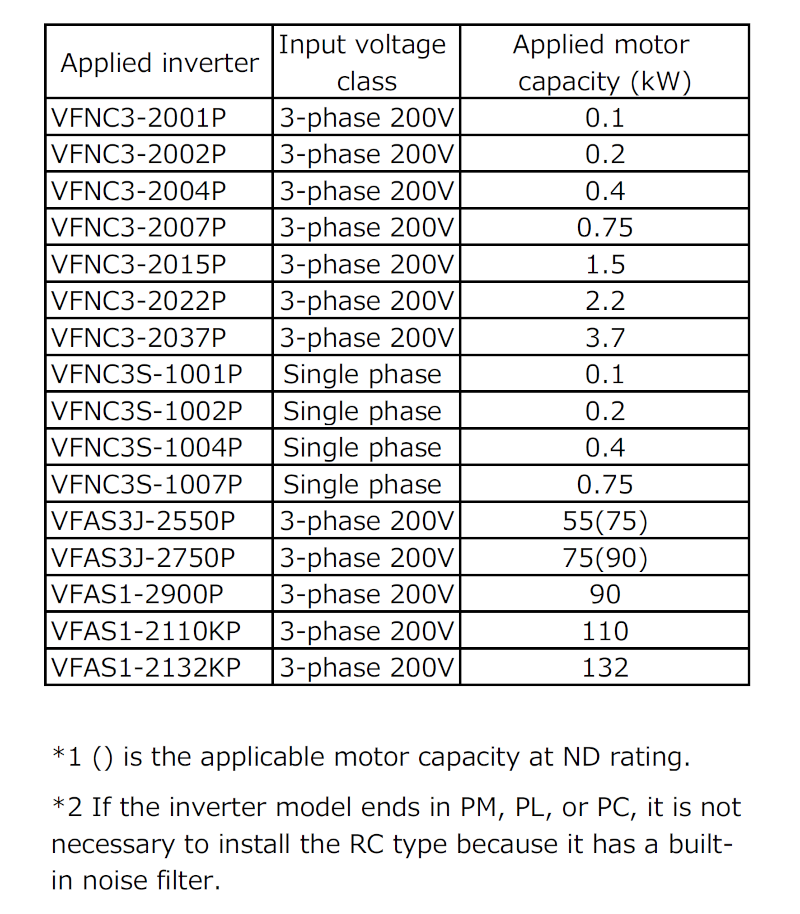

RC type zero-phase reactor
This is a feed-through filter that can be installed on the power side or output side of the inverter. There are two types of filter, each for a different wire size.
By default, the wire is wound four turns. When the wire size is 22 mm2 or more, feed the filter straight through five RC type reactors.
Inverter radio noise filter Spec
Installation direction (o: Can be installed, x: Cannot be installed)
| Type-form | Rating | Rating | Installation direction | |
|---|---|---|---|---|
| Horizontal (floor standing) | Vertical (wall mount) | |||
| NF3005A-MJ | 250V-5A | High attenuated type | o | o |
| NF3015A-MJ | 250V-15A | High attenuated type | o | o |
| NF3020A-MJ | 250V-20A | High attenuated type | o | o |
| NF3030A-MJ | 250V-30A | High attenuated type | o | o |
| NF3040A-MJ | 250V-40A | High attenuated type | o | o |
| NF3050A-MJ | 250V-50A | High attenuated type | o | o |
| NF3080A-MJ | 250V-80A | High attenuated type | o | o |
| NF3100A-MJ | 250V-100A | High attenuated type | o | o |
| NF3150A-MJ | 250V-150A | High attenuated type | o | o |
| NF3200A-MJ | 250V-200A | High attenuated type | o | o |
| NF3250A-MJ | 250V-250A | High attenuated type | o | o |
| NF3010C-MJ | 500V-10A | High attenuated type | o | o |
| NF3015C-MJ | 500V-15A | High attenuated type | o | o |
| NF3020C-MJ | 500V-20A | High attenuated type | o | o |
| NF3030C-MJ | 500V-30A | High attenuated type | o | o |
| NF3040C-MJ | 500V-40A | High attenuated type | o | o |
| NF3050C-MJ | 500V-50A | High attenuated type | o | o |
| NF3060C-MJ | 500V-60A | High attenuated type | o | o |
| NF3080C-MJ | 500V-80A | High attenuated type | o | o |
| NF3100C-MJ | 500V-100A | High attenuated type | o | o |
| NF3150C-MJ | 500V-150A | High attenuated type | o | o |
| NF3200C-MJ | 500V-200A | High attenuated type | o | o |
| NF3250C-MJ | 500V-250A | High attenuated type | o | o |
| RCL-M2 | for 200V | Simple type | o | o |
| RCL-M4 | for 400V | Simple type | o | o |
| RC5078ZZ | - | Zero-phase reactor | o | o |
| RC9129ZZT | - | Zero-phase reactor | o | o |
| FT-1KM F200160PB | - | Zero-phase reactor | o | o |
When selecting the noise filter, see the catalogs of the individual inverter models.
