Inverter extension panel, etc.
An extension panel for remote operation and a USB conversion unit for connecting the inverter to a PC, among other components, are available.
Inverter extension panel, etc.
About Inverter extension panel, etc.
When the inverter is installed inside the control panel, use the inverter options as appropriate for your application. These options include an extension panel that allows you to operate the inverter and monitor its operation status on the control panel and a USB conversion unit for editing and managing the inverter parameters with a PC.
Features
- Remote operation/mounting of the operation panel on the control panel
- VF-AS3 LCD operation panel
- PC-based parameter management and status monitoring
- Backup of the control power supply if the main circuit power is cut off
Remote operation/mounting of the operation panel on the control panel

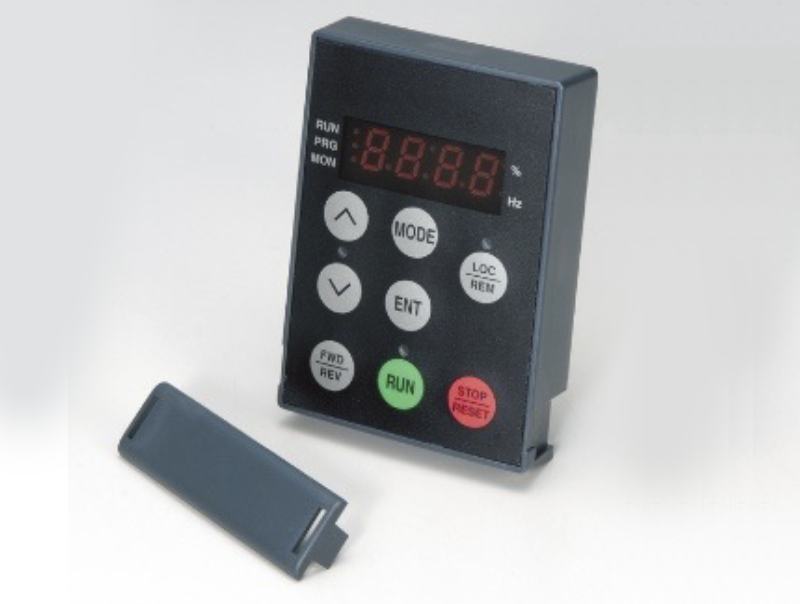

LED extension panel: Type RKP007Z
- You can operate the panel while holding it by hands or mount it on the control panel.
Use a dedicated cable (type: CAB007□).
(□ at the end of the type number represents the cable length.
1: 1-meter cable, 3: 3-meter cable, 5: 5-meter cable)
VF-AS3 LCD operation panel

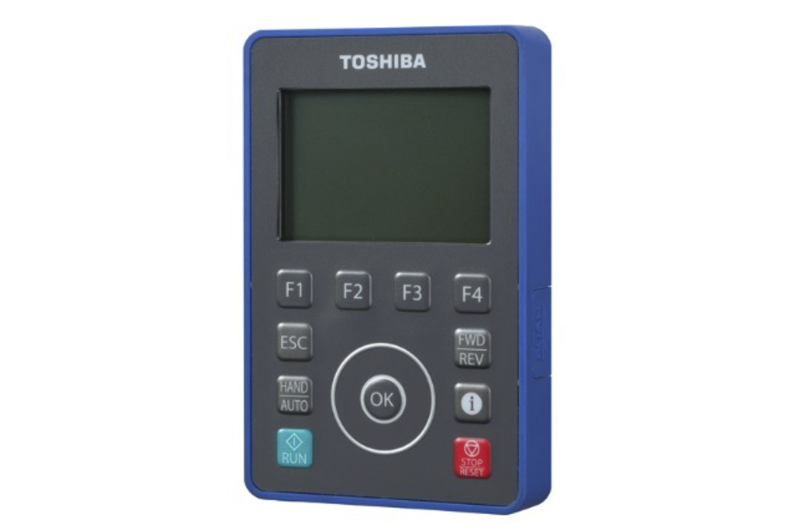

LCD operation panel: Type RKP010Z
・The door mount kit (SBP010Z) lets you install the panel on the control panel surface.
PC-based parameter management and status monitoring
USB conversion unit: Type USB001Z
- Parameters can be set and managed using a PC.
- Inverter side: A dedicated cable (type: CAB001□) is supported.
(□ at the end of the type number represents the cable length. 1: 1-meter cable, 3: 3-meter cable, 5: 5-meter cable) - PC side: A commercially available USB cable (USB 1.1/2.0 compatible A-B connection type) is supported.
- To manage parameters, use the communication software for maintenance PCM002Z (available for free as a member service).
Backup of the control power supply if the main circuit power is cut off
Control power supply option: Type CPS002Z
- If the main circuit power is cut off, this option backs up the control power supply to maintain the displayed data and output signals.
- Use this option when using the commercial use/inverter switching function.
Inverter extension panel, etc. Spec
| Option name | Type-form | VF-AS3 | VF-S15 | VF-nC3 | VF-AS1 | VF-PS1 |
|---|---|---|---|---|---|---|
| Control power supply | CPS002Z | o | o | x | o | o |
| LED remote panel | RKP007Z | o | o | o | x | x |
| 1m cable | CAB0071 | o | o | o | x | x |
| 3m cable | CAB0073 | o | o | o | x | x |
| 5m cable | CAB0075 | o | o | o | x | x |
| LCD remote panel | RKP010Z | Equipped | x | x | x | x |
| 1m cable | CAB0071 | o | x | x | x | x |
| 3m cable | CAB0073 | o | x | x | x | x |
| 5m cable | CAB0075 | o | x | x | x | x |
| 10m cable | CAB00710 | o | x | x | x | x |
| Door mount kit | SBP010Z | o | x | x | x | x |
| USB conversion unit | USB001Z | o | o | o | o | o |
| 1m cable | CAB0011 | o | o | o | o | o |
| 3m cable | CAB0013 | o | o | o | o | o |
| 5m cable | CAB0015 | o | o | o | o | o |
* Please contact us for options for VF-AS1 and VF-PS1.
When selecting the extension panel and other components, see the catalogs of the individual inverter models.
