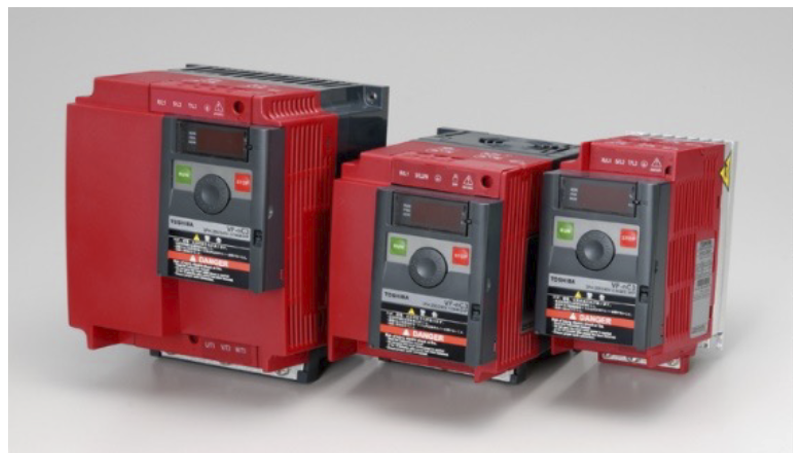

Simple and compact inverter VF-nC3
This series offers the most compact model among the Toshiba inverter series inverters.
It can be used as easily as a power distributor and helps you apply an inverter to control a small-size machine.
Simple and compact inverter VF-nC3
CatalogAbout Simple and compact inverter VF-nC3
Developed on the concepts of "easier operation," "easier installation" and "easier settings," this inverter can be used for living-related equipment such as food processing machines, transport machines, fans and pumps.

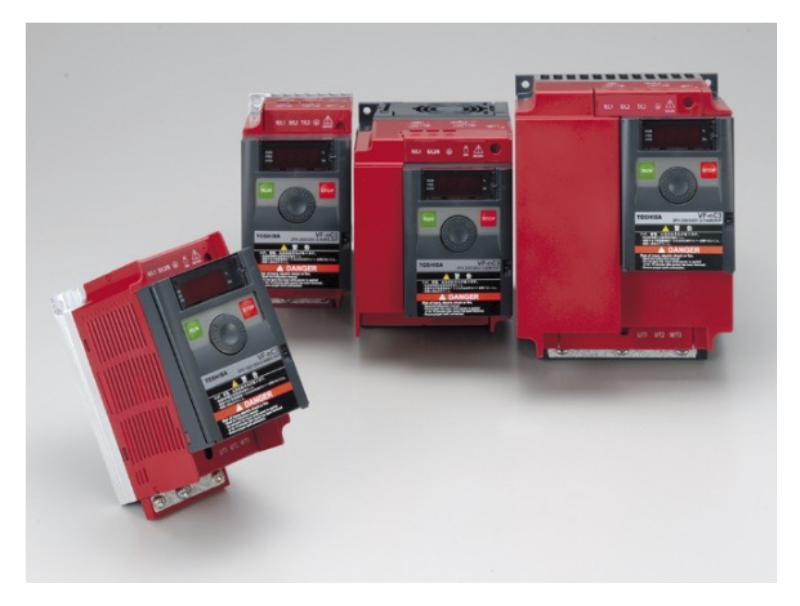

Input voltage class/applicable motor capacity
・ Single-phase 120 V input: 0.1 to 0.75 kW
・ Single-phase 240 V input: 0.1 to 2.2 kW
・ Three-phase 240 V input: 0.1 to 3.7 kW
Features
Easy operation

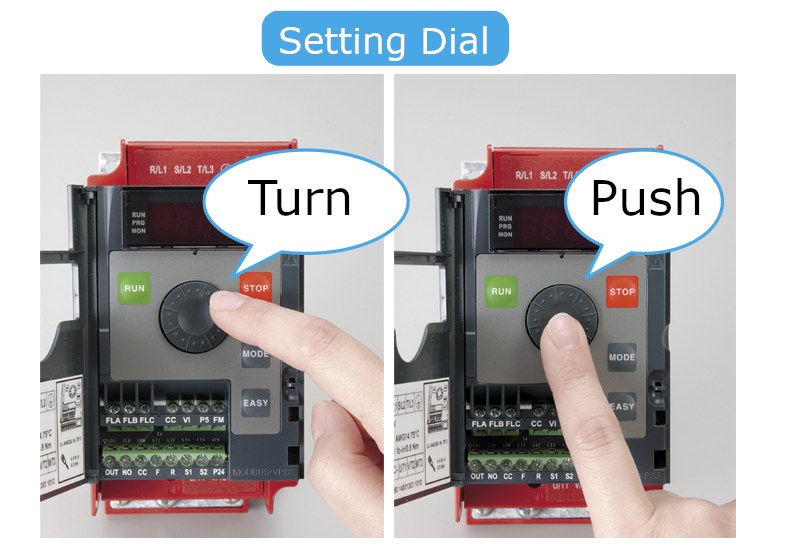

・The large setting dial in the center of the panel allows easy operation.
・To set a parameter, turn the setting dial and push its middle part to select the setting.
・The setting dial can also be used as a frequency setting knob.
Easy installation
・Like the power distributor, this inverter has a vertically oriented main circuit terminal block, which makes wiring arrangement easy and keeps the wiring space in order.

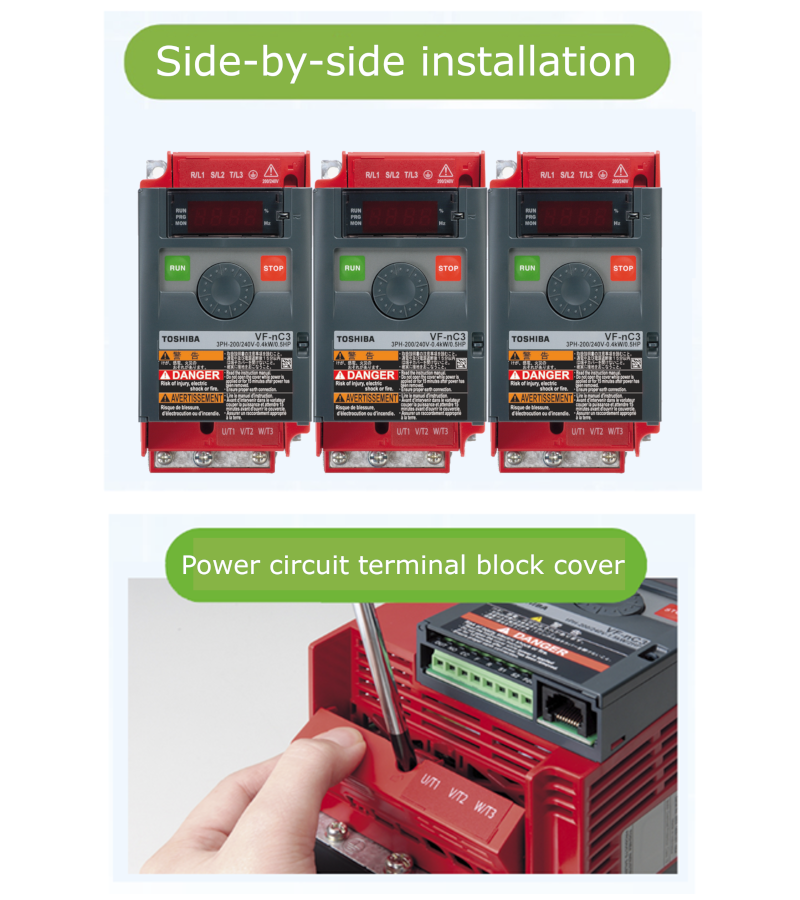

・Multiple units can be installed side by side, saving the space inside the control panel.

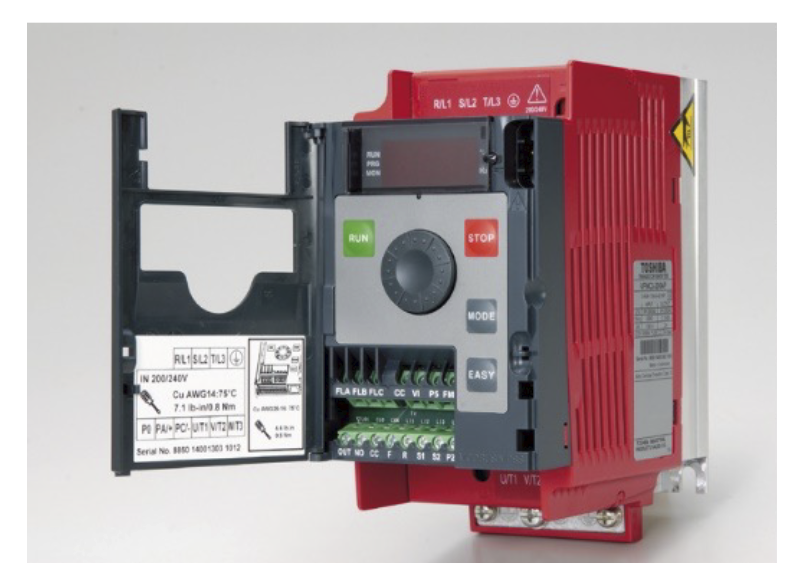

・The main circuit terminal block cover can be removed with a wiring screwdriver as well. This ensures easy wiring work and safety.
Easy settings
・Only the frequently used parameters are shown (easy mode).

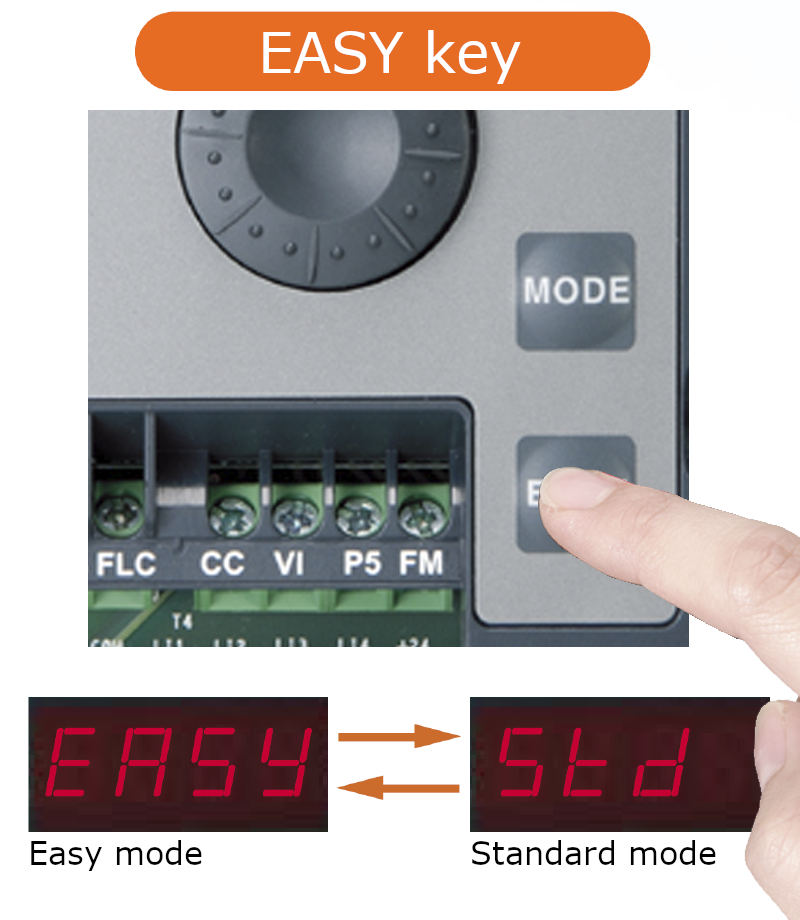

Using the EASY key, you can toggle between two modes.
[Easy mode]: Only the eight most frequently used parameters are shown. Up to 24 parameters can be registered.
[Standard mode]: All the parameters can be shown.
Adopts
- Built in the equipment, saving the space inside the control panel.
- The input of single-phase 100 V and single-phase 200 V is supported.
- Safety function
- Eco-friendly design
Built in the equipment, saving the space inside the control panel.
Like the power distributor, this inverter has a vertically oriented main circuit terminal block, which makes wiring arrangement easy and keeps the wiring space in order.

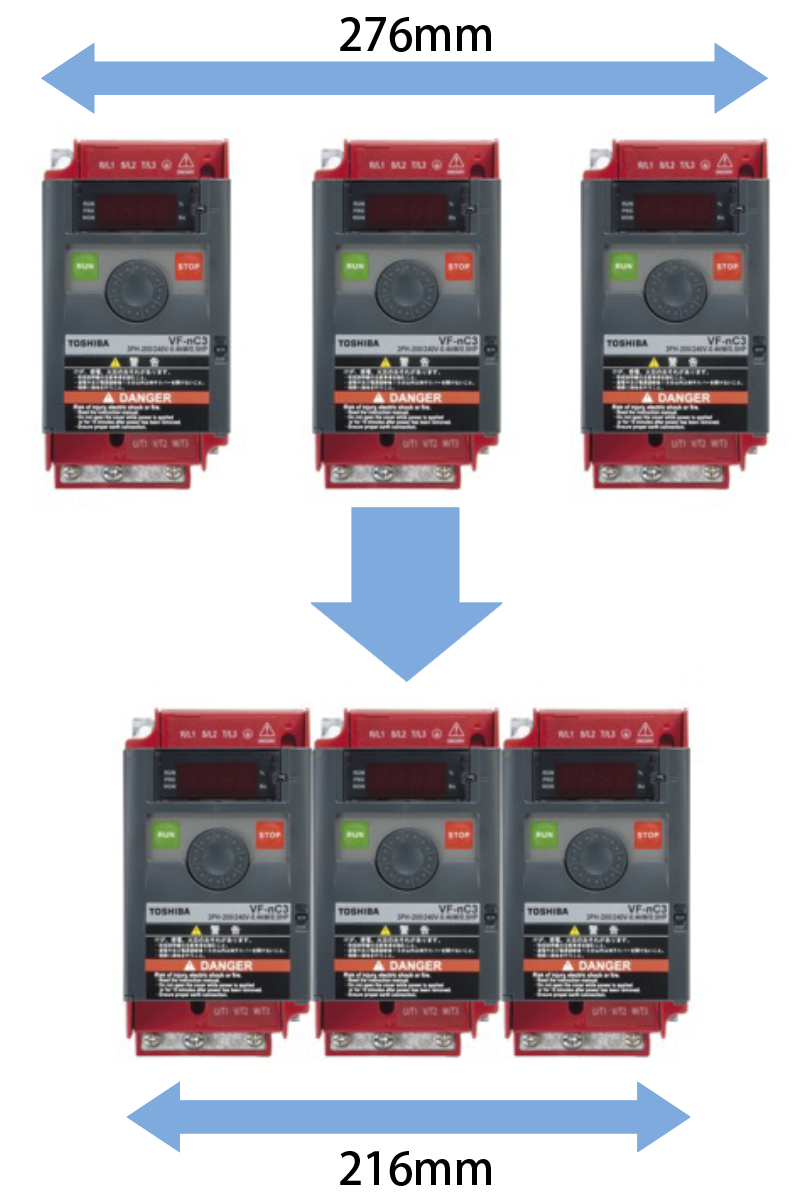

Also, multiple units can be installed side by side, saving the space inside the control panel.

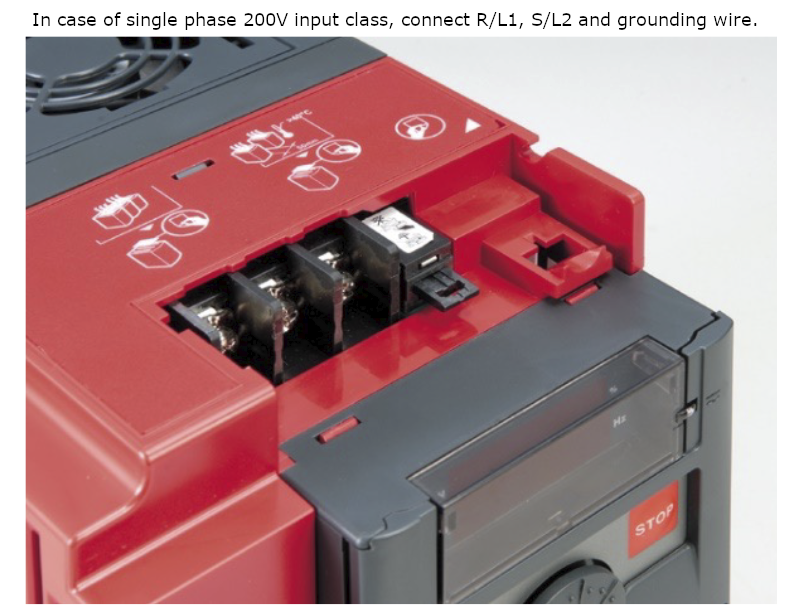

The input of single-phase 100 V and single-phase 200 V is supported.
A power supply of single-phase 100 V or single-phase 200 V can be used.
・Single-phase 100 V input: 0.1 to 0.75 kW
・Single-phase 200 V input: 0.1 to 2.2 kW
* The applicable motor is a three-phase 200 V motor. Variable-speed operation can be performed by replacing the single-phase motor with a three-phase motor.
Safety function
You can set the function to prohibit parameters from being changed. Protection with a four-digit password is available for enhanced security.
The inverter also features a function that stores all customer-defined settings at once and resets changed values to those settings.
Eco-friendly design
The inverter is compliant with the RoHS Directive (Directive on the Restriction of the Use of Certain Hazardous Substances in Electrical Equipment).
Also, the single-phase 200 V models have a built-in EMC noise filter as a standard feature. The filter significantly reduces the harmonic noise generated by the inverter, achieving compliance with the EU EMC Directive.
Performance
Superb motor control
Select the motor control mode that matches the load characteristic of the equipment to bring out the best equipment performance.
・To change the rotation speed
Operate the inverter in the default "V/f constant mode."
・When the equipment requires high torque
Use sensor-less vector control, which enables stable high-torque operation from the start until the rated rotation speed is reached.
Auto energy-saving mode
The inverter supports the auto energy-saving mode for operating fans, pumps and other devices in an energy-saving manner. Also, a current appropriate for the load flows. (The motor constant needs to be set.)
A wide range of application conditions
The inverter supports comprehensive specifications, allowing it to be applied to a wide variety of equipment around the world.
① Logic switching for control circuit terminals
② Power supply voltage: Three-phase 200 V, single-phase 200 V and single-phase 100 V
③ Ambient temperature: 60°C
④ Altitude: 3000 m
⑤ Operating frequency: 0.1 to 400 Hz
⑥ Programmable I/O terminals
Simple and compact inverter VF-nC3 Spec
| Item | VF-nC3 | ||
|---|---|---|---|
| Rating | Applicable motor (kW) HD(Heavy Duty) rating | Single-phase 120V input class | 0.1 to 0.75kW |
| Single-phase 240V input class | 0.1 to 2.2kW | ||
| 3-phase 240V input class | 0.1 to 3.7kW | ||
| Overload current rating (HD rating) | 150% - 1 minute | ||
| Dynamic braking circuit | Option | ||
| Power supply (Voltage - frequency) | Single-phase 120V input class | Single-phase 100V to 120V, 50/60Hz | |
| Single-phase 240V input class | Single-phase 200V to 240V, 50/60Hz | ||
| 3-phase 240V input class | 3-phase 200V to 240V, 50/60Hz | ||
| Power supply (Allowable fluctuation) | Voltage: -15%, +10%, frequency: +/-5% | ||
| Degree of protection (IEC60529) | IP20 | ||
| Cooling method | Self-cooling / Forced air-cooled *A | ||
| EMC filter (IEC61800-3) | Embedded / - *B | ||
| DC reactor | Option | ||
| Control specifications | Output frequency range | 0.1 to 400Hz | |
| Minimum setting steps of frequency | 10 bits | ||
| Frequency accuracy | Analogue | +/-1.0% of the maximum output frequency | |
| Digital | +/-0.1% of the output frequency | ||
| Voltage/frequency characteristics | V/f constant, Variable torque, Automatic torque boost, Sensorless vector control, Energy savings | ||
| Interface specifications | Digital input | 5 (1: selectable digital input / analogue input) | |
| Digital output | 1 | ||
| Pulse train frequency input | - | ||
| Pulse train frequency output | 1 (selectable PTO / digital output) | ||
| Relay output | 1c | ||
| Analogue input | 1 | ||
| Analogue output | 1 | ||
| PTC input | - | ||
| Control power supply | Output | 5Vdc - 10mA | |
| 24Vdc - 100mA | |||
| Input | - | ||
| Functional safety | - | ||
| Communication | Embedded | RS485: Toshiba inerter protocol, Modbus RTU | |
| Environment | Ambient temperature | -10 to +60 °C *1 | |
| Storage temperature | -25 to +70 °C (Temperature applicable for a short term.) | ||
| Relative humidity | 5 to 95% (free from condensation) | ||
| Altitude | 3000m or less *2 | ||
| Vibration | 5.9m/s2 (0.6G) or less (10 to 55Hz) | ||
*1: Over 40°C, remove top-seal and need current reduction
*2: Need current reduction over 1000m
| *A Self-cooling: VFNC3-2001P to 2007P Forced air-cooled:VFNC3S-2001PL to 2007PL VFNC3S-1001P to 1004P VFNC3-2015P, 2022P VFNC3S-2015PL, 2022PL VFNC3S-1007P |
| *B without noise filter: VFNC3-2001P to 2022P EMC filter:VFNC3S-1001P to 1007P VFNC3S-2001PL to 2022PL |
Input voltage classes and applicable motor capacity range
Single-phase 120 V input: 0.1 to 0.75 kW
Single-phase 240 V input: 0.1 to 2.2 kW
Three-phase 240 V input: 0.1 to 3.7 kW
Overload capacity: 150% for 1 minute
