This product is a crystallization of the motor technology that Toshiba has fostered over the past 120 years. The high efficiency technology of the premium gold motor solves energy and environmental issues.
Premium gold motor
(frame size 250 and larger)
CatalogAbout Premium gold motor
(frame size 250 and larger)
The premium gold motor (frame size 250 and larger) applies the latest high efficiency technology to optimize motor design technique and make the product lighter. The motor is compliant with the Top Runner standard.
The motor is used in a vast variety of industrial equipment.Upon request, the motor can be customized as best suited to the machine.
Features
- Primary copper loss reduction: Coil
- Secondary copper loss reduction: Rotor
- Iron loss reduction: Iron core
- Stray load loss reduction: Harmonic analysis
- Mechanical loss reduction: Fan
- Cooling performance improvement: Frame
Primary copper loss reduction: Coil
Optimizing the slot shape and increasing the wire occupancy reduces copper loss occurring in the stator coil.
Secondary copper loss reduction: Rotor

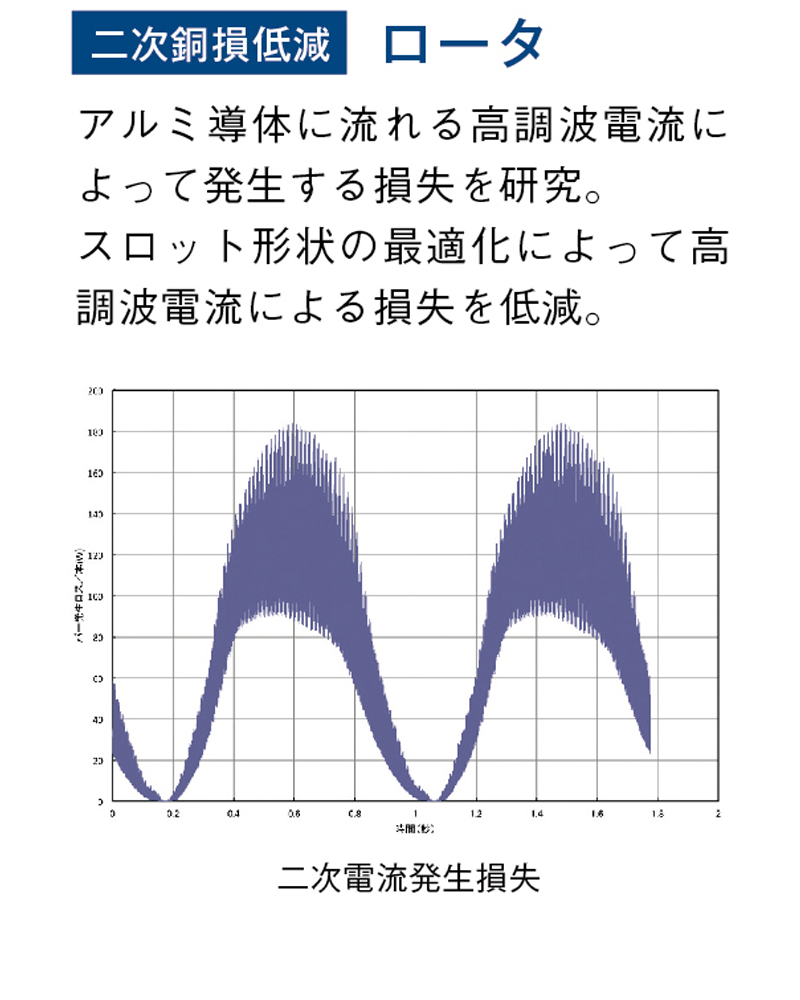

We have researched the loss caused by a harmonic current that flows through the aluminum conductor and reduced this loss by optimizing the slot shape.
Iron loss reduction: Iron core
The use of an iron plate made of high-grade materials that cause little loss results in a reduction in loss occurring in the iron core of the stator.
Stray load loss reduction: Harmonic analysis

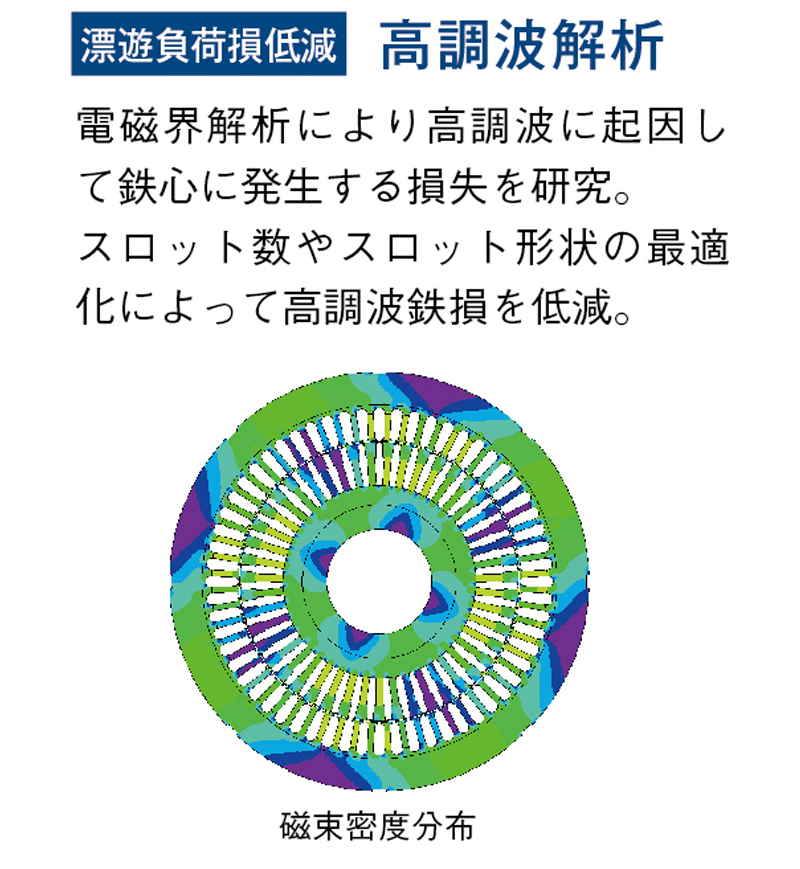

We have conducted electromagnetic field analysis to research the loss that harmonics cause in the iron core
and reduced harmonic iron loss by optimizing the number of slots and the slot shape.
Mechanical loss reduction: Fan
A new type of fan has been developed that achieves a balance between cooling performance improvement and loss reduction.
Noise generation has also been reduced.
Cooling performance improvement: Frame
We have conducted 3D fluid and thermal analyses to research airflow distribution and radiation performance. A new frame has been developed that features improved cooling performance achieved by optimizing the frame shape.
(frame size 250SC, 250MC, 280SC and 280MC)
Adopts
- Excellent energy-saving performance provides increased economic effects.
- Compatibility with the standard motors is ensured in terms of the installation dimensions.
- Class 155 (F) insulation (temperature rises limited to Class B) is used.
Excellent energy-saving performance provides increased economic effects.

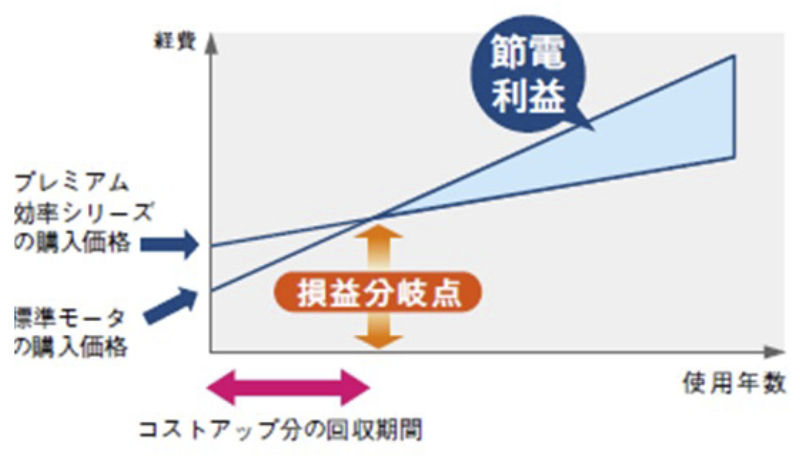

The high efficiency premium series reduces loss that occurs in the motor. This reduces power consumption during motor operation, and a lower electric power cost provides an energy-saving effect.
Compatibility with the standard motors is ensured in terms of the installation dimensions.
The high efficiency premium series reduces loss that occurs in the motor. This reduces power consumption during motor operation, and a lower electric power cost provides an energy-saving effect.
Class 155 (F) insulation (temperature rises limited to Class B) is used.
All models have Class 155 (F) insulation as a standard feature and limit temperature rises to 80 K (Class B), further boosting the insulation reliability.
Premium gold motor (frame size 250 and larger) Spec

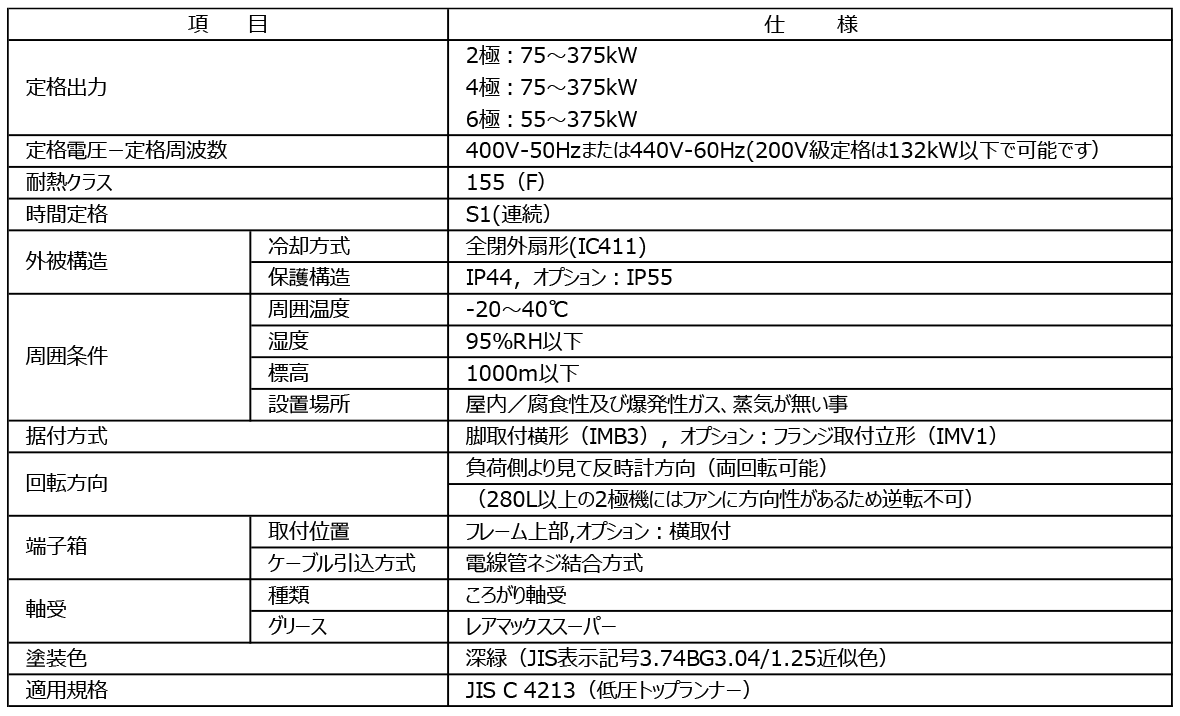

2-/4-pole at 75 to 375 kW, 6-pole at 55 to 375 kW
400 V at 50 Hz or 440 V at 60 Hz (The 200 V class ratings are supported at 132 kW or less.)
