Interior permanent magnet (IPM)
Toshiba offers a new idea for energy-saving motor drive. Our IPM motor drive system enables unprecedentedly high operation efficiency.
Interior permanent magnet (IPM)
About Interior permanent magnet (IPM)
(frame size 250SC, 250MC, 280SC and 280MC) due to a secondary current, offering higher operation efficiency.
Features
- The highest level of efficiency is provided as a motor.
- Toshiba's unique magnet array reduces the amount of magnet usage.
- The installation dimensions are the same as those of the standard induction motor.
- Highly accurate rotation speed control is possible.
- A standard inverter can be used.

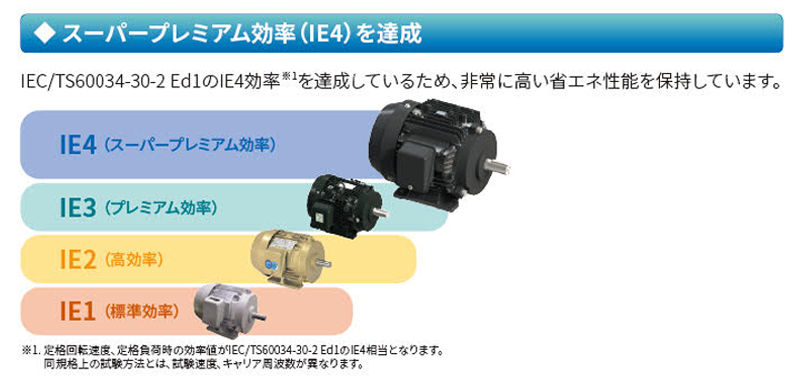

The highest level of efficiency is provided as a motor.
The highest level of efficiency is provided as a motor, exceeding the efficiency value of IE3.

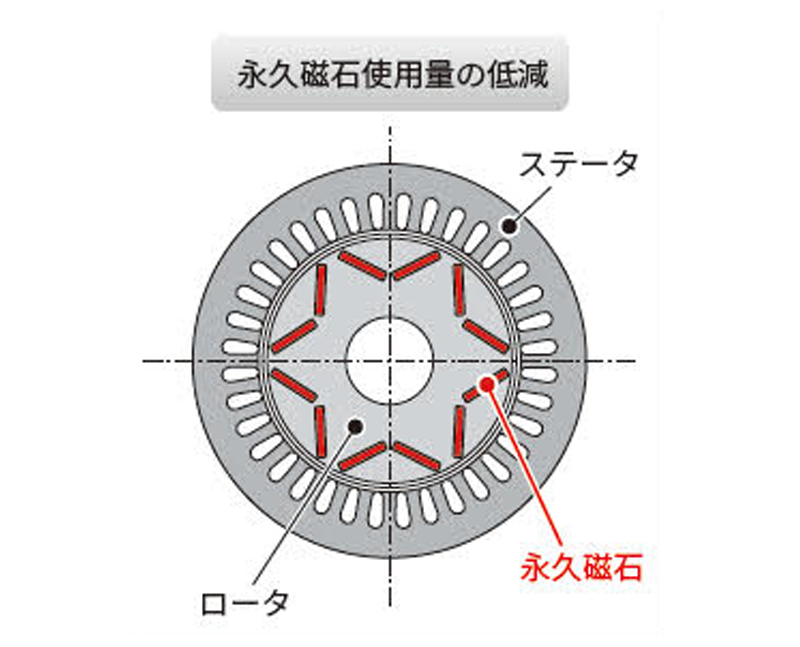

Toshiba's unique magnet array reduces the amount of magnet usage.
Toshiba's unique magnet array allows the effective use of reluctance torque, thus reducing the amount of magnet usage.

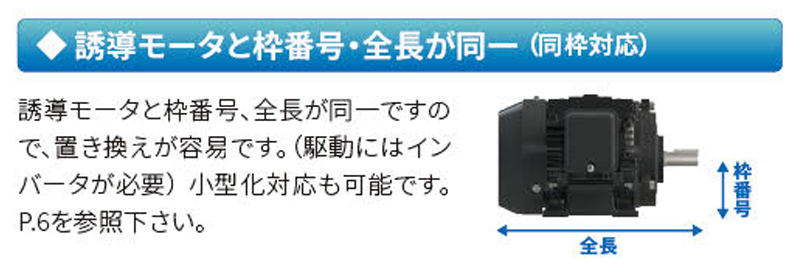

The installation dimensions are the same as those of the standard induction motor.
Replacement is easy because the installation dimensions are the same as those of the standard induction motor.
(An inverter is needed to drive the motor.)
Highly accurate rotation speed control is possible.
Since the IPM motor rotates at a synchronous rotation speed, highly accurate rotation speed control is possible.

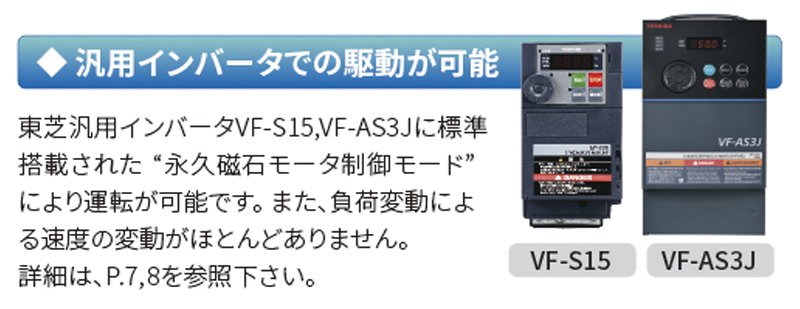

A standard inverter can be used.
Since the IPM motor rotates at a synchronous rotation speed, highly accurate rotation speed control is possible.
Adopts
- Replacement is easy because the installation dimensions are the same as those of the induction motor.
- Same scope of application specifications as the induction motors
- When used in combination with the Toshiba inverter, it is easy to simplify or adjust part of the wiring.
Replacement is easy because the installation dimensions are the same as those of the induction motor.
Replacement is easy because the installation dimensions are the same as those of the standard induction motor.
Interior permanent magnet (IPM)
Like the induction motor, more than 80 types of application specifications are supported.
Application specifications tailored to the customer's equipment are supported, including outdoor, different voltage and special specifications.
When used in combination with the Toshiba inverter, it is easy to simplify or adjust part of the wiring.
・Magnet position sensor-less control makes the sensor wire unnecessary.
・The current phase shifting function allows you to increase efficiency as appropriate for the IPM motor characteristics.
・The parameter table accompanying the IPM motor allows easy adjustment.

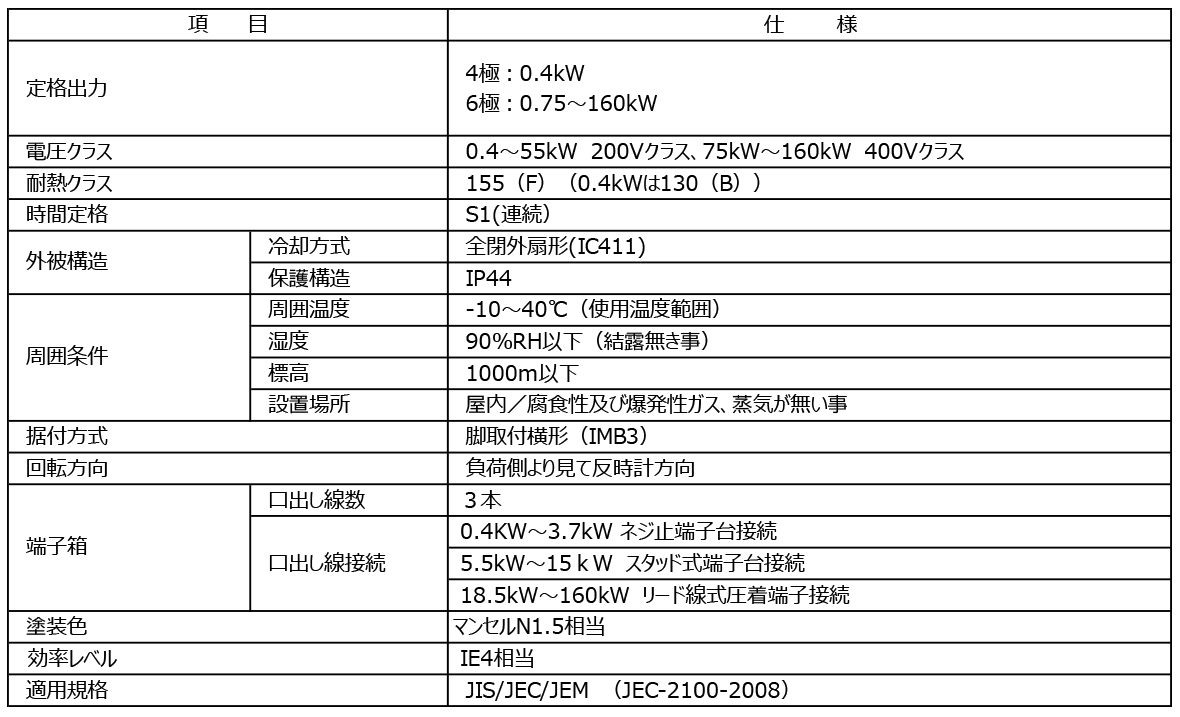

Toshiba interior permanent magnet (IPM) motor Spec
IE4 super premium efficiency models (series of the same frame)
4-pole at 0.4 kW, 6-pole at 0.75 to 160 kW
