Gear motor (SF series)
The Toshiba gear motor is an excellent geared motor that we confidently recommend as a key device in many industries. The high-performance Toshiba motor, combined with a high-accuracy gear reducer, contributes to increasing efficiency and achieving great
Gear motor (SF series)
About Gear motor (SF series)
The SF series is an oil-lubricated model for medium load. Made of selected materials with superb machining and heat treatment techniques, the gear reducer boasts a long service life and high efficiency. Its ideal gear engagement ensures quiet operation. It is equipped with the premium gold motor, which means this gear motor is compliant with the Top Runner standard.
Features
- Compliant with the Top Runner standard
- Installation compatibility with the existing SF series is provided. The use of the output shaft keyway compliant with the new JIS standard allows easy key selection.
- Powerful
- Inverter drive is supported.
- Toshiba's unique oil lubrication mechanism
Compliant with the Top Runner standard
It uses the premium gold motor, which means this gear motor is compliant with the Top Runner standard.
The motor can be expected to provide a significant energy-saving effect compared to standard efficiency motors.

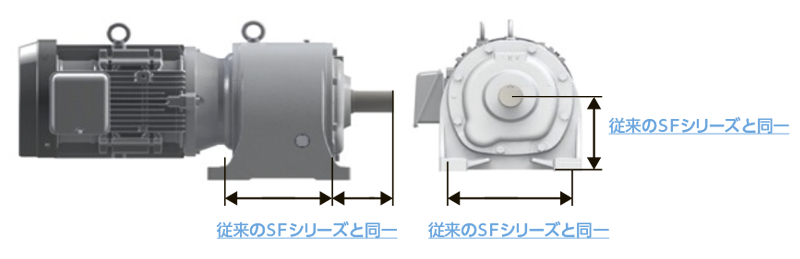

Installation compatibility with the existing SF series is provided. The use of the output shaft keyway compliant with the new JIS standard allows easy key selection.
Replacement is easy because the reducer frame size is the same as before. Also, the output shaft keyway compliant with the new JIS standard (JIS B 1301) is used, allowing easy key selection.
(The motor-side dimensions are different as a result of making the motor more efficient. The keyway dimensions are also different since the existing SF series complies with the former JIS standard.
Powerful
Strength design of AGMA Class II. The motor offers powerful transmission capability for medium loads.
Inverter drive is supported.
All models support inverter-driven constant torque operation within the range of 1:10 (6 to 60 Hz). At 50 Hz, 4-pole models of 15 kW or lower and 6-pole models of 11 kW or lower support constant torque operation within the range of 1:10 (5 to 50 Hz).
Toshiba's unique oil lubrication mechanism

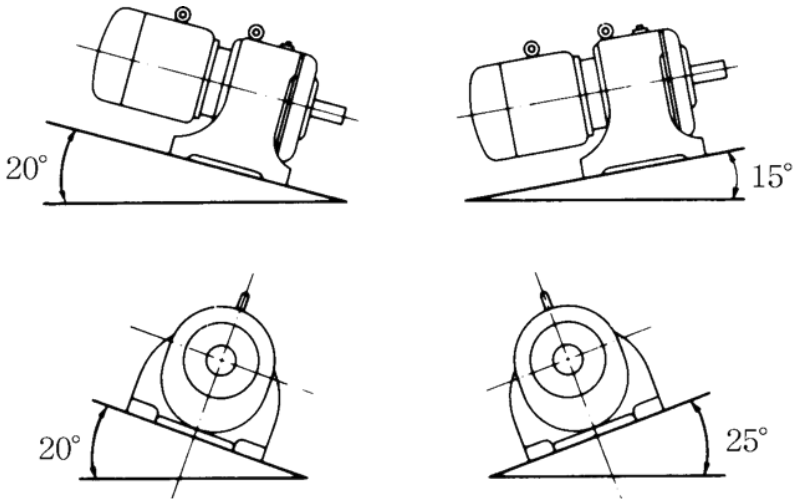

The lubrication performance is enhanced by using Toshiba's unique dip lubrication method. Also, a large tilt angle can be used for installation.
Adopts
- The motor is compliant with the Top Runner standard, and its energy-saving effect reduces environmental impact.
- Installation compatibility
- A vast range of medium load applications are supported.
- Easy maintenance
The motor is compliant with the Top Runner standard, and its energy-saving effect reduces environmental impact.
Compared to our existing standard motor, loss is reduced by 30 to 40%. The energy-saving effect resulting from increased efficiency contributes to reducing environmental impact.
Installation compatibility
Replacement is easy because the installation dimensions (frame size)are the same as those of the existing series.
A vast range of medium load applications are supported.

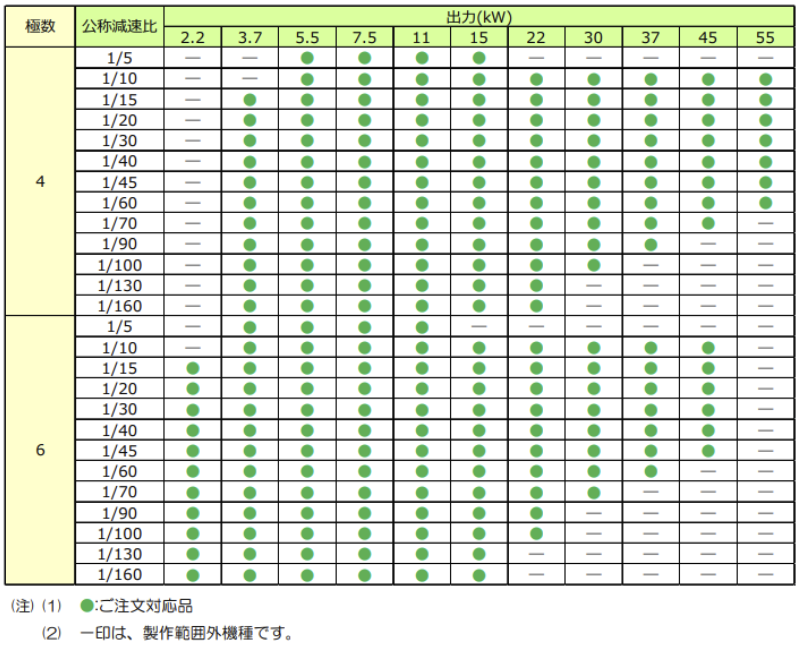

A broad-ranging lineup is available for medium load applications, including 4-pole models of 3.7 kW to 55 kW, 6-pole models of 2.2 kW to 45 kW and models with gear ratios of 1/5 to 1/160.
Easy maintenance
The simple bearing structure allows the reducer to be disassembled and assembled with ease simply by removing the reducer cover.

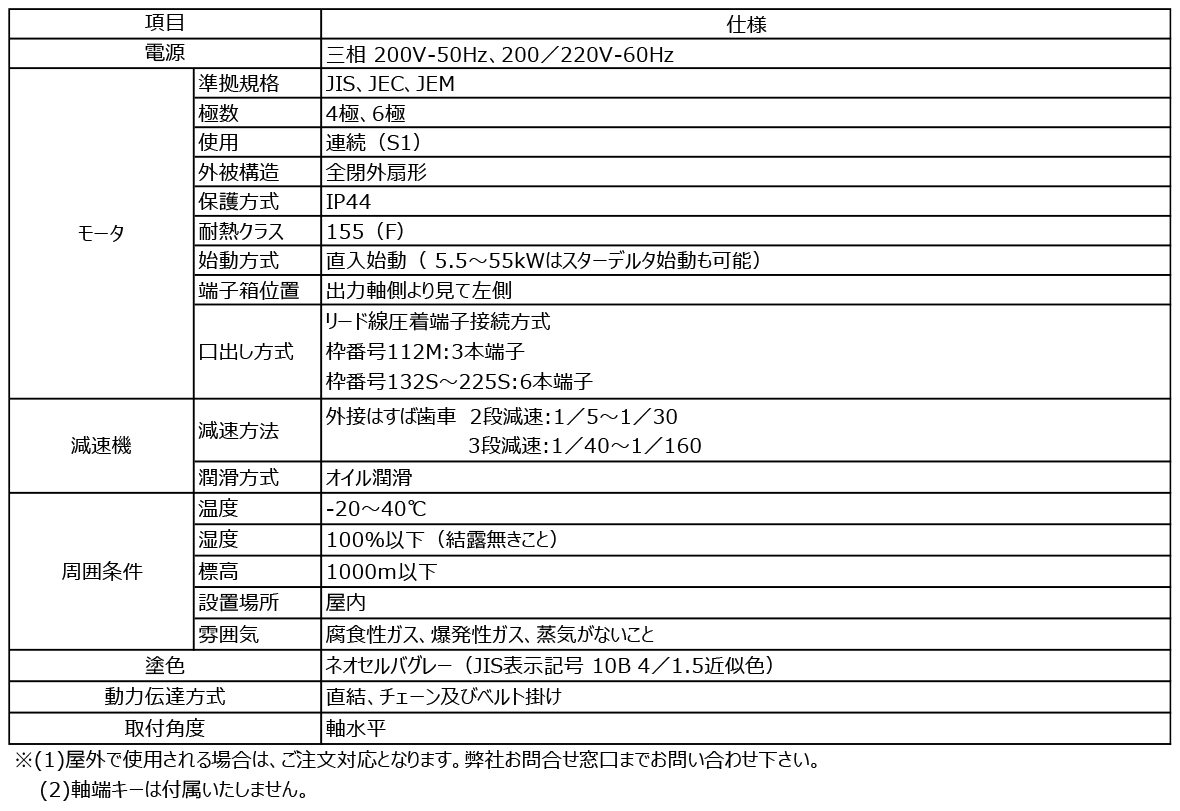

Gear motor (SF series) Spec
For medium load applications SF series
4-pole at 3.7 to 55 kW, 6-pole at 2.2 to 45 kW Gear ratio 1/5 to 1/160
