Gear motor (PG series)
The Toshiba gear motor is an excellent geared motor that we confidently recommend as a key device in many industries. The high-performance Toshiba motor, combined with a high-accuracy gear reducer, contributes to increasing efficiency and achieving great
Gear motor (PG series)
About Gear motor (PG series)
Since the PG series has its gear lubricated with grease, there is no limitation on its mounting angle. Also, because the motor requires little space for installation, it can be easily installed anywhere. It is equipped with the premium gold motor, which means this gear motor is compliant with the Top Runner standard. (Excluding the 0.4-kW model)
Features
- Compliant with the Top Runner standard. (Excluding the 0.4-kW model)
- Installation compatibility with the existing A series is provided.
- Higher allowable torque when driving driven by the inverter
- Triple lip seals are used.
Compliant with the Top Runner standard. (Excluding the 0.4-kW model)

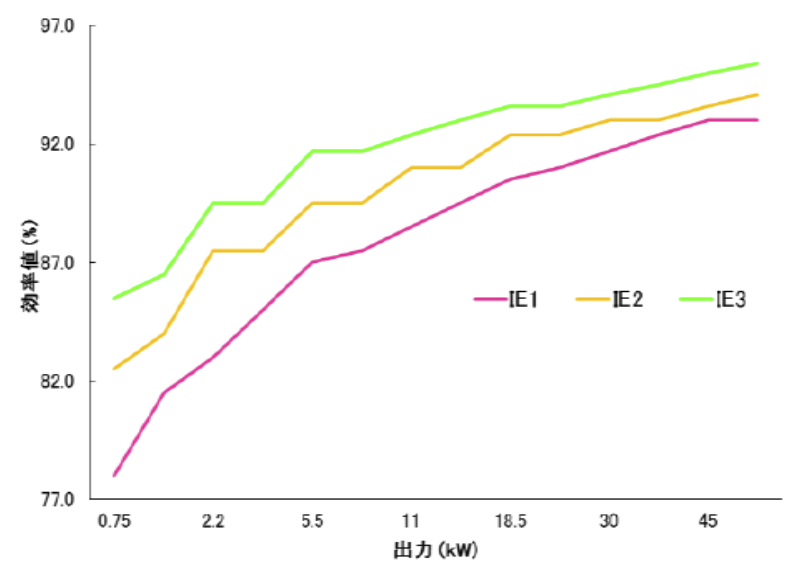

The efficiency level of IE3 (premium efficiency) specified in JIS C 4034-30:2011 is achieved for both of Japan's power systems: 200 V at 50 Hz and 200/220 V at 60 Hz (same for the 400 V class).

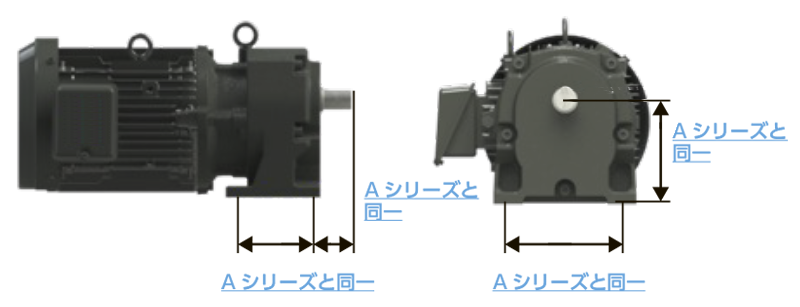

Installation compatibility with the existing A series is provided.
The installation dimensions (frame size) are the same as those of the existing A series.
Also, the allowable overhung load is the same as that of the existing A series, enabling easy replacement.
Higher allowable torque when driven by the inverter
Models of 0.75 kW and higher support inverter-driven 100% constant torque operation within the range of 1:10 (50 Hz base: 5 to 50 Hz; 60 Hz base: 6 to 60 Hz).

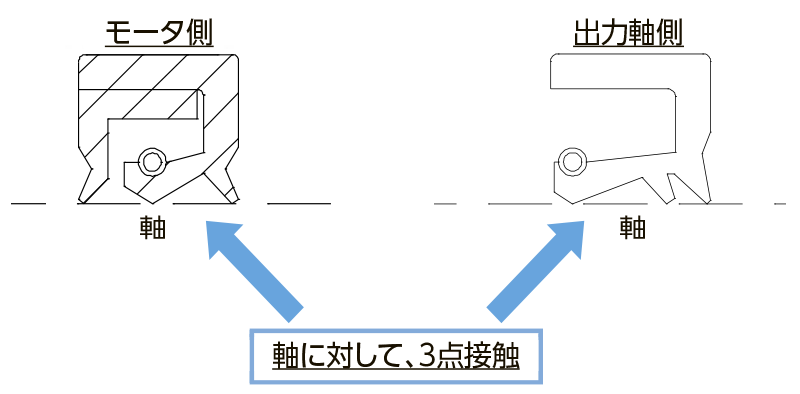

Triple lip seals are used.
The motor shaft and output shaft use triple lip oil seals, resulting in improved sealing performance compared to the existing A series.
Adopts
- The motor is compliant with the Top Runner standard, and its energy-saving effect reduces environmental impact.
- Installation compatibility with the existing series is provided.
- Broad-ranging lineup to support specific applications
- Robustness and high reliability
- No limitations on the mounting angle
- Different variations are supported.
The motor is compliant with the Top Runner standard, and its energy-saving effect reduces environmental impact.
Compared to our existing standard motor, loss is reduced by 30 to 40%. The energy-saving effect resulting from increased efficiency contributes to reducing environmental impact.
Installation compatibility with the existing series is provided.
Replacement is easy because the installation dimensions (frame size) and allowable overhung load are the same as those of the existing series.
Broad-ranging lineup to support specific applications

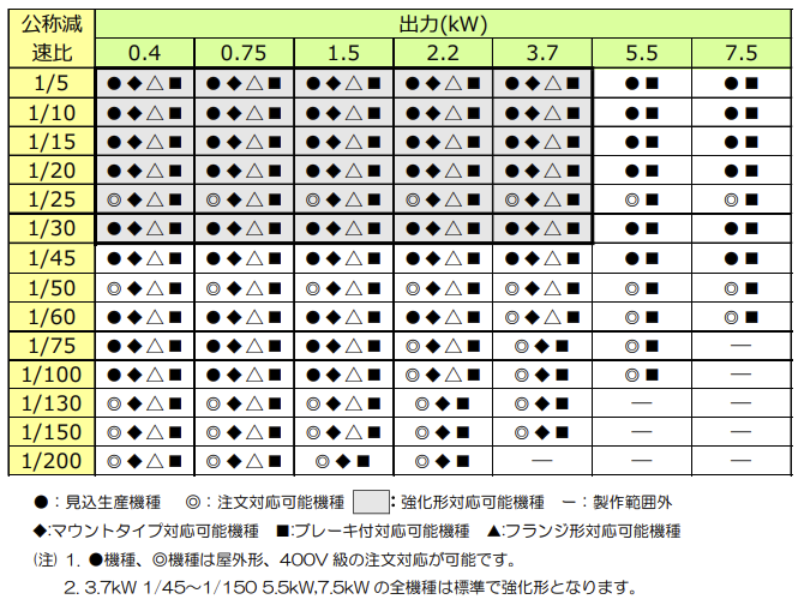

In addition to the standard types with gear ratios of 1/5 to 1/200, a broad-ranging lineup is available for diverse applications, including enhanced models, mount-type models and brake-equipped models.
Robustness and high reliability
Cast iron is used in the gear case, making for a robust and highly reliable structure.
Also, the motor shaft and output shaft use triple lip oil seals, resulting in improved sealing performance.
No limitations on the mounting angle
The grease-contained type gear motor allows any desired mounting angle to be selected.
Also, the motor can be installed as appropriate for the place of installation.
Different variations are supported.

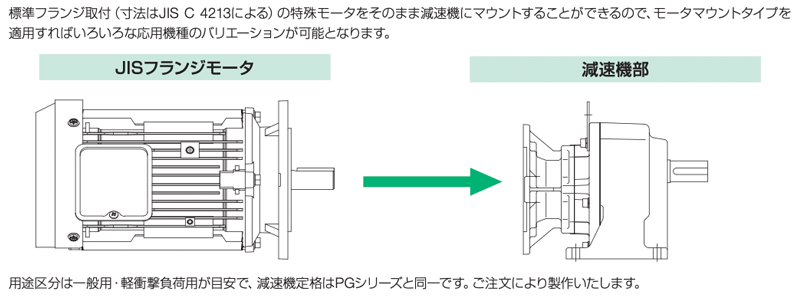

A special motor having the standard flange (the dimensions are as per JIS C 4213) can be mounted on the reducer as is. The use of the motor mount type makes various applied models available.

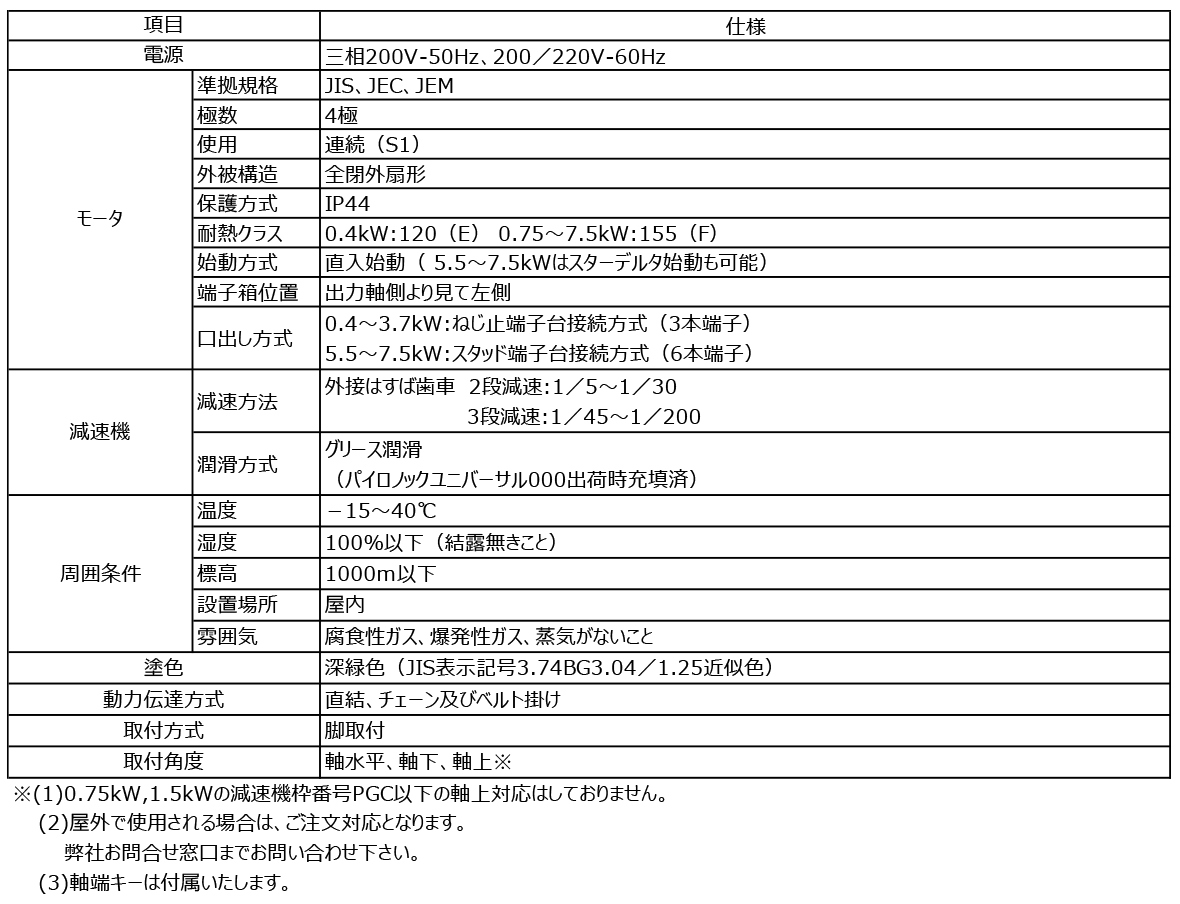

Gear motor (PG series) Spec
For general industry applications PG series
4-pole at 0.4 to 7.5 kW Gear ratio 1/5 to 1/200
